JY-280F / JY-320F Automatic flow wrapping machine

Product name: JY-280F / JY-320F Automatic flow wrapping machine

Main performance & characteristics

1 .Adopt a higher precision Servo system,with PLC & AC inverter intelligent and step-less controlling. which can realize simple operation and more correctly cutting.

2.High-sensitive photo sensor,automatically adjust,track,find cutting point,accumulatively count packs,Automatic measure bag length.

3.Digital and independent PID temperature controlling,suitable for various packing materials. New type double fin sealing design makes the packaging high efficiency and beauty.

4.Adjustable bag former and pitches,enable the change of packing products conveniently.

5.The area connect to products are full stainless steel .With timing belt transmission,Compact structure,lower noise and less shake.

6.Variety of optional device is available,Like: Touch screen/Date coder/Labels applicator/Euro slot or hole punch/Gusset forming /Nitrogen or gas inflation/Spraying alcohol/Automatic film splicer/ Auto feeding/Desiccant feeder /Auto falling/Products conveyor/No products no packing I Check weigh / Metal detector etc.

Using range:

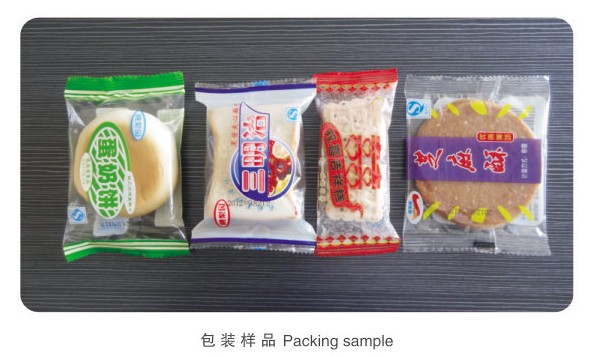

Mainly used for various kinds of solid objects with regular shape(Square/Rectangle/Circular/Ellipse/Flake etc.),such as moon-cake,muffin cake,bread,fruit pie,biscuits,sweet roll,sweets,chocolate,pharmaceuticals tools,medicine,daily necessities,hardware,or any other products loaded in box or tray.

Technical parameter

Model JY-280F JY-320F
Packing speed (bag/minute) 30-200bag/min 30-200bag/min
Packing size (mm)
Length x Width x Height
L60-280 L80-320
W10-40/40-100 W10-40/40-100
H5-25/25-40 H5-30/30-60
Maximum width of film (mm) <280mm <320mm
Thickness of film (mm) ≥0.02mm ≥0.02mm
Power 220V,50/60HZ,2.5KW 220V,50/60HZ,2.5KW
Overall size (mm) 4390*700*1520mm 4390*700*1520mm
Weight 500kg 550kg
Package 2.2CBM.2CASES 2.3CBM.2CASES
Packing material OPP/PP、OPP/CPP PT/PE、PE、KOP/CPP、PT/PE/x AL/PE etc.Any heat-sealable composite materials foil/film
