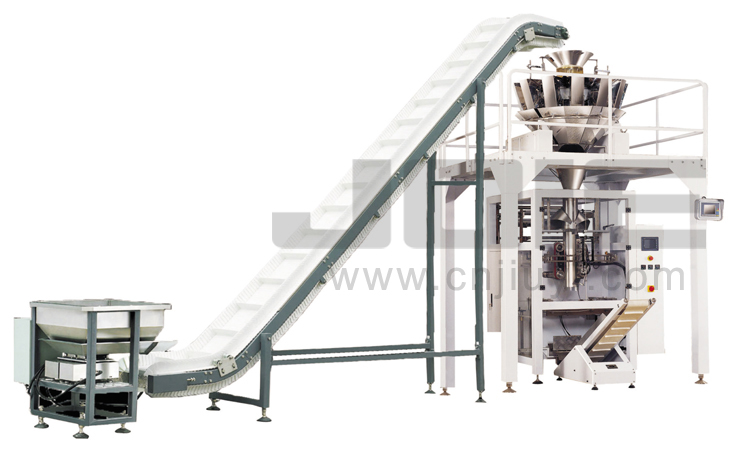

Multi-head Combination Weigher Full Automatic Packaging Machine

Product name: Multi-head Combination Weigher Full Automatic Packaging Machine

Combined parts

1、JEV series vertical machine 2、Vibration feeder
3、10 heads weigher 4、 Z type bucket elevator
5、Supporting platform  6、 Product conveyor

Technical parameter

Mode JEV-520AG(gusseted bag) JEV-680AG(gusseted bag) JEV-820AG(gusseted bag)
Measuring range 2000ml(Max) 4000ml(Max) 6000ml(Max)
Bag-making size /
Front width 75-130mm 75-130mm 75-130mm
Side width 40-80mm 40-80mm 40-80mm
With of side seal 5-10mm 5-10mm 5-10mm
Bag length 100-380mm 100-380mm 100-380mm
Packaging speed 10-60bags/min 10-60bags/min 10-60bags/min
Packaging material OPP/PP、OPP/CPP'''' PT/PE、PE、KOP/CPP、PT/PE/x AL/PE etc. Any heat-sealable composite materials foil/film
Max width of film roll 520mm(gusseted bag:460mm) 680mm(gusseted bag:520mm) 820mm(gusseted bag:680mm)
Voltage 220V 50-60HZ 220V 50-60HZ 220V 50-60HZ
Power 5.5Kw 5.5Kw 5.5Kw
Dimension L1500*W1220*H1800mm L1500*W1220*H 1800mm L1500*W1220*H 1800mm
Machine Weight 600Kg 700Kg 850Kg
