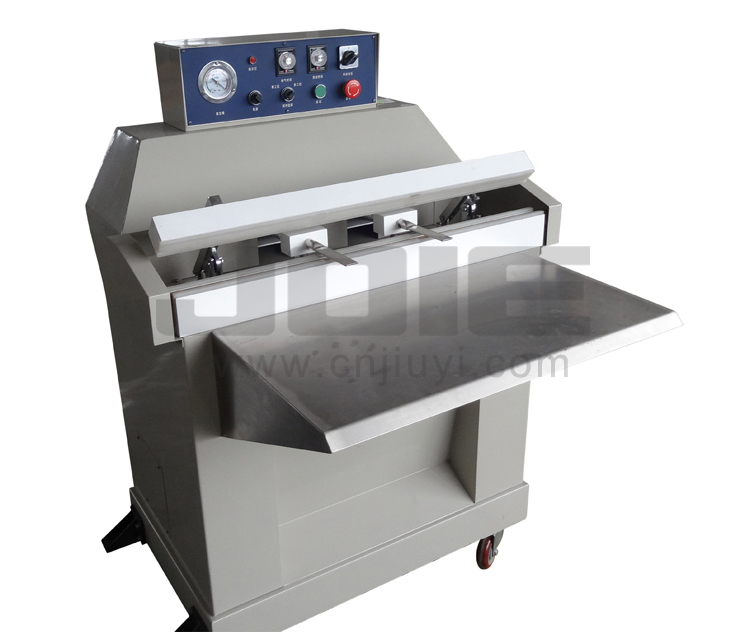

DZ-800C air extractor packaging machine

Product name: DZ-800C air extractor packaging machine


With complete functions, DZ-800C air extractor packaging machine can not only do process of sealing, but also vacuum extraction and insert gas flushing after vacuum extraction.


This machine owns double gas nozzles in chamberless design.


Without limitation caused by the size of vacuum chamber, the air extractor packaging machine has very wide application range.

Technical parameter

Model DZ-800C
Voltage (V/Hz) AC 220/50   110/60
Sealing Power (W) 600
Motor power (W) 750
Air Compressor Power (W) -
Sealing Length (mm) ≤ 800
Sealing Width (mm) 10
Distance from Sealing Center to Floor (mm) -
Tilting Angle of Sealing Head (°) -
Vacuum Pump Rate (m3/h) 20
Film Thickness (Single Layer) (mm) ≤ 0.18
External Dimension (L×W×H) (mm) 920×1100×1200
Net Weight (kg) 95
